Armored and security doors

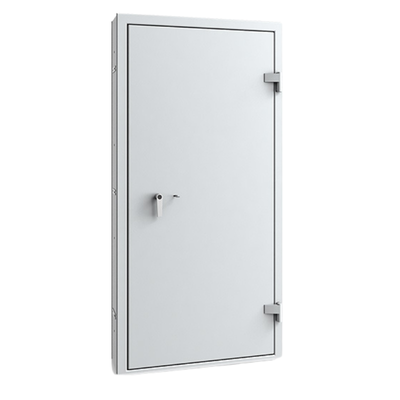

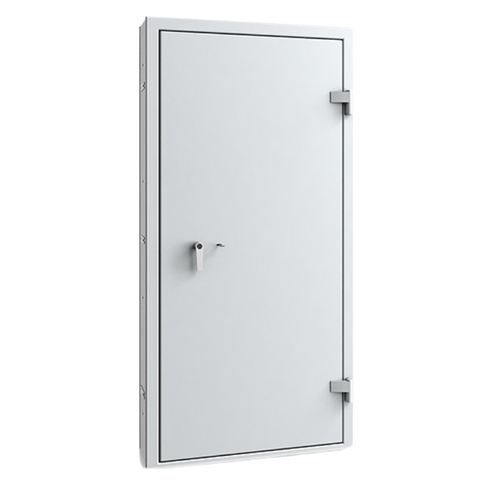

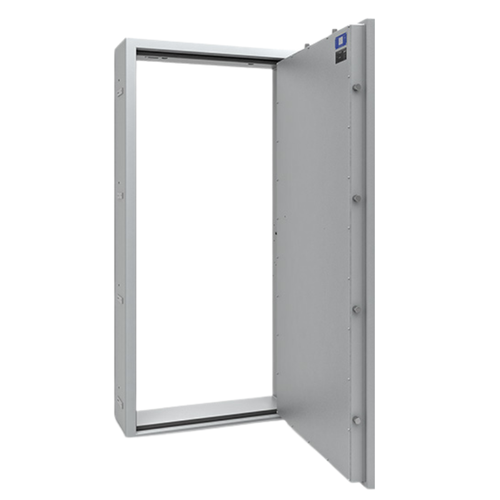

NPCC Series - Grade I-X

Choose variant
Outside Dimensions (H x W x D cm)
200 x 100 x 24 (+ 5,2 cm handle protrusion)
Weight (kg)
265
Lock Info
Key Lock
Net Passage
189 x 84
Door Thickness
10,4
Defence
4,4

Do you have an armoured room without a proper door?

Conforti armoured doors is what you need. It is essential for the protection of your room.

NPPC armoured doors offer a very high security grade. Thanks to their steel profiles, and locking sys-tem by means of pistons, they are easily adaptable to reinforced concrete structures or modular prefabricated constructions (caveaux).

NPPC models are certified from Grade I to X, according to the UNI EN 1143-1 rule.

Depending on their security grade, NPCC armoured doors are equipped with key lock up to Grade III while they have a key lock and a mechanical combination lock from Grade IV

 Specifications

  • inside and outside steel shell
  • thickness and compound of inside armouring vary according to the different certification grades
  • possible inspection of device room for maintenance
  • locks are protected and placed inside the device room cylindrical bolts (40 or 60 mm. diameter)
  • right or left door opening

 Locks

  • NPCC 01/03: certified mechanical key lock
  • NPCC 04/05/06/07/08/10: certified mechanical key lock and certified mechanical combination lock

Digital locks on request (multiple users, Time-Delay, Time-Lock, remote control to alarm system etc.)

Accessories: single gate

Colour: RAL 7035 Grey


Contact us for more information:
conforti@conforti.it +39 045 8877329
Request informations
Scheda tecnica Data sheet
Variant Outside Dimensions (H x W x D cm) Net Passage Weight (kg) Grade
NPCC01 200 x 100 x 24 (+ 5,2 cm handle protrusion) 189 x 84 265 I
NPCC03 200 x 100 x 30 (+ 5,2 cm handle protrusion) 189,4 x 84,2 751 III
NPCC04 200 x 100 x 30 ( + 5,2 cm handle protrusion) 189,4 x 84,2 783 IV
NPCC05 200 x 100 x 30 (+ 5,2 cm handle protrusion) 187,7 x 80,8 878 V
NPCC06 212,3 x 109,2 x 30 (+ 5,2 cm handle protrusion) 200 x 90 1000 VI
NPCC07 218,5 x 115 x 20 (+ 5,2 cm handle protrusion) 200 x 90 930 VII
NPCC08 229 x 135 x 45 (+ 11,3 handle protrusion) 200 x 90 3060 VIII
NPCC10 233 x 135 x 50 (+ 11,3 handle protrusion) 200 x 90 3650 X
